Spun Pile Supplier Malaysia | Precast Piles & Foundation

November 26, 2019

Aathaworld can supply spun pile, other precast piles and foundation materials for buildings and infrastructural works. Foundation is the support of any structural, it enables the load transfers of the structure to the soil. However, the recipient layer of the foundation which is to be transferred with load should be having an appropriate or sufficient capacity of load bearing, making it highly suitable to the characteristics of settlement. Few of the factors must be considered when foundation design to be made, such as time-frame, water level, soil test result, level of sensitivity for vibration or noise, superstructure’s final load, resources’s availability and most importantly to businesses are the cost concern. Spun pile supplier Malaysia can always advise accordingly to what is required by the end user in the design too.



Deep foundations and shallow foundations are two general classifications that shall be mentioned here, deep foundation will be applied when surface soil’s bearing capacity is inadequate to support the structure’s load and the deeper soil level will take up the loads eventually. On the other side, shallow footings can be installed whenever structure’s imposition of load that could be withstood by the soil surface. Pile foundation is actually a type within the category of deep foundation, it is made up of long cylinder materials inclusive of steel or concrete. The slender column is applied in order to act as structural support while carrying out the load transferring at the pre-set depth. Spun pile supplier in Malaysia claims that the concrete used in the materials making is actually reinforced concrete and steel, while timber will sometimes be applied too. Piled foundation is also defined as it is when the width is 3 times smaller than the depth.



The installation of pile foundation is highly suitable to situation where level of excessive settlement resistance as well as uplift resistance by the soil are low when it is at the deep shallow. Pile foundation can also be useful when it faces several situations, such as when deep drainage or canal systems close to the structure, shallow depth’s soil compressible, improper weight or uneven loads allocated from the superstructure, higher groundwater level, other foundations types are not applicable or cost is not feasible, as well as when the location of it nears to seashore, river bed and etc. In accordance to spun pile supplier Malaysia, there are also two other scenarios where pile foundation is suitable to be applied, i.e., when possibility is never happen at all for both soil excavation or to keep foundation trenches dry due to bad condition of soil as well as by pumping or other ways because of heavy seepage inflow respectively. At the same time, there are many types of pile foundations that being categorized by its method of installation, materials composition and functionality. Examples of piles category by its method of construction and elements are namely steel piles, concrete piles, composite piles and timber piles; whereas end bearing piles, load bearing piles, sheet piles, soil compactor piles and friction piles are separated by its functions.

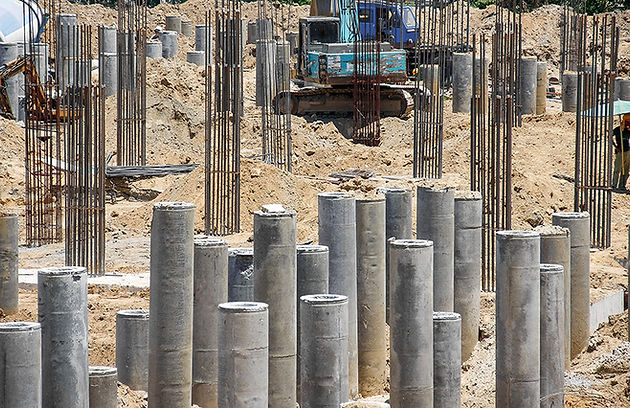

There is one pile foundation that falls under cast-in-situ (it would mean that the pile is made by concrete), the concrete pile will be casted at the construction site. Steps are started by several methodology explained by spun pile supplier in Malaysia, from ground holes drilling until the required depth and holes being filled by concrete. Required reinforcement will become the mixture in the concrete pile as per specified by consultant, drilled piles have bigger diameters compared to those piles. Pre-excavation before the piles are casted in position within the ground can eliminate the vibration created when driving the vehicle or any stress handling. One or more bulbs will be casted at the intervals for these straight bored piles, it is also named as under-reamed piles. Another pile is known as driven pile foundations where it would be made by timber, steel or concrete, prefabricated at the yard or factory before it will be sent and placed at the site of construction. Precast concrete piles are very normal and it will be installed or driven by the appropriate pile hammer. Spun piles supplier Malaysia says that driven piles will take up the same amount of soil when it is being driven into the granular soils. Soil densification will be resulted after the surrounding of piles’ sides being compacted by the prior piling action. It is called as compaction pile, it helps to enhance the bearing capacity of adjacent soil. Cohesive soils and saturated silty soils are actually having low richness level of drainage capability, so it will not be compacted even when drilled pile driven through it. Soil’s water will need to be drained up before compacting soil can be done, if not, this is developing the scenario where pore water bears the stress adjacent to the piles. By having said that, pore water pressure will then increases as well as soil’s bearing capacity decreases.

Driven and cast-in-situ piles are another types of having both the features of the previously mentioned piles. It will have mandrel being inserted to the pile’s steel shell of diameter into the earth, before shell-driving, removal of mandrel and pouring of concrete into the shell. Spun piles supplier in Malaysia has another type piles known as shell type pile where it is a combination of reinforced and corrugated monotube piles (thin steel sheet) as well as common seamless pipe (armco welded pipe). While placing the concrete, contractor will withdraw the shell and shell-less type will be formed. Both of the pile types, the cone tip shaped bottom can be divided from the shell. Spun pile has an extensive usage globally in the construction industry, especially for infrastructure work such as bridges. Prestressed concrete pile that is having hollow circular section is the unique feature of spun pile, it is performing better in the marine sector too as compared to reinforced concrete pile, it is having lower permeability and can achieve grade 80. In addition, spun piles can be applied to flood defences, ports, wharf, high-rise foundation as well as other civil works.

Where to Get Spun Pile Supplier and Other Pile Foundation Materials in Malaysia

Aathaworld Sdn Bhd supply multiple pile material or spun piles that can be used for high rise, industrial, commercial and other buildings, customizable specification. As piles material supplier in Malaysia, we are able to provide a full service consultancy, customized supplies and apply for your project covering new, repair, refurbishment and renovation projects in KL Kuala Lumpur, Selangor, Klang Valley, JB Johor Bahru, Penang, Malacca (Melaka), Seremban Negeri Sembilan, Perak, Pahang, Kuantan, Kelantan, Terengganu, Perlis, Alor Setar Kedah, as well as Sabah and Sarawak for East Malaysia; of course, we are also able to be pile foundation material supplier for other countries in Southeast Asia (SEA) such as Singapore, Myanmar (Burma), Cambodia, Vietnam, Laos, Thailand, Indonesia, Philippines, Brunei, Bangladesh as well as China, Taiwan, Hong Kong, Australia and New Zealand.



Submit your both pile foundation materials projects sourcing requirements, either you are looking for a supplier for new or existing building, upgrading or renovation for all range of building types in KL Kuala Lumpur, Selangor or other states in Malaysia. Submit your foundation pile materials sourcing requirements enquiry now to info@aathaworld.com or call (WhatsApp) to +(60)11-7001 1003 (Monday to Friday) or +(60)11-1188 1003 (Saturday, Sunday & Public Holidays).
